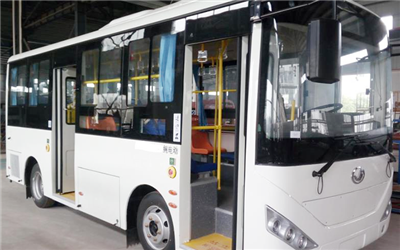

Saite 6750 bus oil-driven city bus

2024/11/13

赛特6750客车油动城市客车


Announced car models:

Rated number of passengers

Overall dimensions (length, width and heightmm

7500×2240×2820 (excluding air conditioning height)

Wheelbase (mm

4000

Maximum speed (km/h

100

Number of standard seats

29

sales floor price

19Ten thousand(RMB)

project

Standard configuration

Regular options

diesel fuel

engine

YC4EG160N-50 horsepower160 country5

gearbox

Mastervirtue6DS60TSixth gear(6.67-0.78),VDsensor;

sedan

Dongfeng Dana axle,forward3.5T,back6t

leaf spring

leaf spring front9back11;With front stabilizer bar, with front and rear shock absorbers

endplate

matchset

steering system

Power steering; steering wheel diameter and type:Φ480four paintings

tire

tire8.25 R16-14PR(Linglong tubeless tires)Spare tire, lifter

self-adjusting arm/ABS

Guangzhou CometABS, with self-adjusting arm

Braking system

Pneumatic dual circuit exhaust brake Front disc and rear drum Parking brake: spring energy storage brake

clutch

Single piece dry diaphragm spring

carbody

matchset

body structure

Rectangular tube

passenger door

quantity2(before and after)fold

safety roof window

1Individual ventilation fan

Side window form

sliding window

Optional fully enclosed recessed sliding windows

exterior rearview mirror

Rabbit ear reversing mirror

interior

Soften the inner roof, inner panels and instrument panel of the air conditioner

base plate/floor leather

Bamboo plywood+leather

armrest/hanging ring

Stainless steel handrail/Patterned tubes and hanging rings

Sunshades and side window curtains

Pull-down front baffle and side windows standard

passenger seat/Driver's chair

plastic seat/Adjustable driver's seat, driver's and driver's seat belts

coin box

have

street sign/In-car scrolling screen

have

body paint

Customized by customer

other

Electrical appliances

system

air conditioning system

Refrigeration:1618kw

Defrost system

have

Car lighting

forward1back2

monitor/Monitoring system

Reversing video+Four-way monitoring

other(television)

Optional
