Product model/Model

price:80million yuan(RMB) Tax included and shipping fee excluded

COMPLETE VEHICLE SPECIFICATION

Vehicle parameters

long(mm）

Length

11980

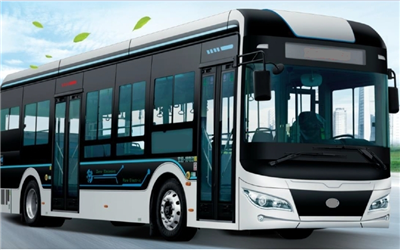

Pictures for Reference

Width(mm）

Width

2550

high(mm）

Height

3290/3450

Wheelbase (mm）

Wheelbase

6000

forward/Rear wheelbase (mm）

Front/Rear tread

2060/1860

front overhang/Rear suspension (mm）

Front/Rear overhang

approach angle/departure angle (°）

Angle of approach/Departure

Overall quality (Kg）

Curb weight

13000

Maximum total mass (Kg）

Maximum total mass

18000

Axle load (Kg）

Axle load

7500/13500

Maximum number of passengers/standard seat

Maximum passengers capacity

87/31

Maximum speed (Km/h）

Maximum speed

≥70

maximum grade

Maximum gradability

≥15%

Minimum ground clearance (mm）

Minimum ground clearance

≥180mm

Minimum turning diameter (m）

Minimum turning Diameter

≤16m

cruising range

Cruise mileage

300～320KM(Turn on the air conditioner at full load)

CHASSIS SPECIFICATION

type

system

Items

Specifications and models

Specification

Remarks

Power system

Engine/Motor

Permanent magnet synchronous motor, rated:120～245kw, peak torque2000N.m

Permanent Magnetic  Synchronous Motor
120～245kw,2000N.m

transmission shaft

Drive shaft

Maebashi

Front axle

7.5 ton disc type Dongfeng Dana

7.5 Ton, Disc brake

suspension system

Suspension

Front 2 rear 4 air suspension Komen

Air suspension

Ecas system

ECAS System

bring

Yes

rear axle

Rear axle

13.5 tons drum type Dongfeng Dana

13.5 Ton, Drum brake

tire

Tyre

305/70R22.5

305/70R22.5

steel ring

Steel rim

22.5x7.5

22.5x7.5

steering system

Steering system

Electric power steering

Electric power steering

BOSCH

steering wheel

Steering wheel

Four pieces,φ480mm

φ480mm

Braking system

Braking system

Dual circuit air brake,Automatic adjustment arm
Spring energy stored parking brake

Dual air circuit brake,auto slack adjuster,  spring energy storage parking brake

ABS

ABS

ABS

ABS

cooling system

Cooling system

water cooling

Water cooling

expansion tank

Expansion water tank

have

Yes

Tire pressure monitoring

TPMS

bring

Yes

Chassis and accessories

Frame and accessories

Fully load-bearing,first step

Monocoque, Two steps

Vehicle tools

Tool kit

have

Yes

other

Miscellaneous

If yes, please indicate

please specify if any

BODY SPECIFICATION

Body configuration

driving direction

Drive mode

right rudder

LHD

front glass

Front windshield

Laminated glass

Laminated glass

rear glass

Rear windshield

Single layer glass, push up and pull down to fix,tinted glass

Single glazed, Up-sliding,lower-fixed,Tinted

side window glass

Side window

Single glazed, partially sliding

Single glazed, Partial sliding

Ceiling windows and ventilation fans

Roof hatch

2safety overhead window with ventilation fan

1 hatch with ventilation fan

passenger door

Passenger door

Single outswing

single leafe, pneumatic inward swing,

middle gate

Middle door

Double inner swing

Double leafe, pneumatic intward swing

side hatch

Side cabin door

Aluminum alloy/DC02

Aluminum alloy

tail hatch

Rear cabin door

Aluminum alloy/GRP

Aluminum alloy

rearview mirror

Rearview mirror

Lever type manual exterior mirrors

Rack type, Manual

floor

Floor

Bamboo glue floor

Bamboo plastic floor

floor leather

Floor cover

Domestic quartz sand floor leather

Silicon floor leather

Driver's chair

Driver's seat

Mechanical shock absorption, Wear a three-point safety belt

Mechanic shock damping,  with three-point belt

passenger seat

Passenger seat

plastic seats,21～37seat

Plastic seats,28 seats

sunshades

Driver's Sunshield

Driver's front and side

Front and side sunshield for driver

Whole car curtains

Curtain

bring

Yes

instrument panel

Instruments

Overall foaming

Integrated, foamed

interior

Interior trimming

Standard bus interior

As per standard

handrail

Menstruation rail

Yellow snake pattern sprayed steel pipe with hanging ring

Yes, Yellow Knurled steel pipe with Flying rings

guardrail

Protection bar

have

Yes

Stair step lights

Stair light

have

Yes

Fire extinguisher in car

Extinguisher

2indivual4kg

2*4kg

fire safety hammer

Safety hammer

4indivual

4 pieces

paint

Paint

Ordinary paint

Solid color paint

other

Miscellaneous

surrounded by drivers,driver fan

Driver fence, Fan for driver,Fare collector

ELECTRICAL SPECIFICATION

Electrical configuration

battery pack

Power Battery pack

Lithium Iron Phosphate,CATL, 326.7Kwh,water cooling

Lithium Iron Phosphate Battery
CATL, 326.7Kwh, water cooling

National standard, procurement agency, excluding overseas services
Without overseas warranty and after sales service

High voltage control cabinet

PDU

Motor controller

MCU

Auxiliary drive controller

Auxiliary drive controller

Vehicle controller

VCU

Suzhou Green Control

battery

Battery

24V/100AH

24V/100AH

Wiper

Wiper

Ordinary wiper

Two arm wiper

coin machine

Coin machine

bring

Yes

front and back street signs

LED route board(FR/RR)

Front and rear electronic road signs

Front and rear LED destination board

side sign

Side LED route board

Side electronic street sign

Side LED destination board

meter

Instruments

CAN bus

CAN system

driving recorder

Tachograph

bring

Yes

electronic clock

Digital clock

have,Integrated endoscope

Yes, with interior mirror

high mount brake light

Height brake light

bring

Yes

audiovisual system

Audiovisual system

MP3+radio+hard disk player+19inch TV

MP3+Radio+hard disc displayer+19' LCD

video surveillance

Monitoring system

reverse+front door+middle gate+inside the car

Camaras for reverse, passenge doors,and inside

Automatic fire extinguishing device in rear warehouse

Automatic fire extinguisher for rear cabin

Yes

Yes

Hyperbaric chamber fire extinguisher

Fire extinguisher for HV cabin

Yes

Yes

battery compartment fire extinguisher

Fire extinguisher for Battery cabin

Yes

Yes

Electric defroster

Electric defroster

have

Yes

Front door remote control door lock

Door remote controller

have

Yes

Reversing radar

Reverse Radar

Yes

Yes

Vehicle mountedWIFI

WIFI

bring

Yes

air horn

Air horn

have

Yes

Charging port

Charging receptacle

National standard

Chinese GB Standard

other

Miscellaneous

If you have special requirements, please specify

please specify if any
