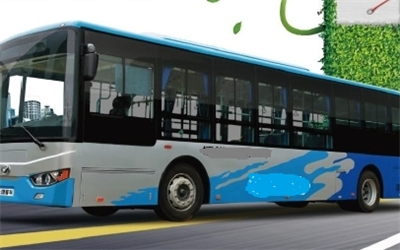

WD6906NG01Natural gas bus configurationNatural gas bus configuration WD6906NG01price:38Ten thousand(RMB)

Announcement model Ad model

WD6906NG01

wheelbase (mm)(forward/back) Wheelbase (mm) (front/rear)

2119，2119/2115，2095

Standard number of seats(Disc rated passenger capacity)

Number of standard seats

(nominal passenger capacity of the disk)

40+1

body structure Body structure

Two-stage step-bearing body Double Stage Step Bearing Housing

Vehicle parameters Vehicle parameters

Curb weight(kg) Curb weight (kg)

8800,9350,9500(Actual data is configured according to the order) 8800,9350,9500 (current data is configured according to the order)

approach angle/departure angle Entry/departure angle

10/9

Maximum total mass(kg) Maximum total weight (kg)

14000

Wheelbase (mm） Wheelbase (mm)

4500

Overall dimensions (mm） Dimensions (mm)

9000×2550×3320

ground clearance(mm) Ground clearance (mm)

150

Maximum speed (km/h） Maximum speed km/h

69

item eye project

Configuration description Configuration Description

Optional instructions Additional Instructions

Power configuration

engine

engine

YC6J210N-52 Europe5emissionpower210horsepower, engine rear-mountedYC6J210N-52 Euro 5, power 210 hp.

gearbox

transmission

DomesticfastManual5gearbox Domestic fast manual 5-speed FAST transmission

Gas cylinder (optional) Gas cylinder (optional)

20Mpa,4*150L

Chassis part

Chassis parts

before and after bridgefront and rear axle

Fangsheng axle, front5.5T,back9.5T, speed ratio5.125 Fangsheng axle, front 5.5 T., rear 9.5 T.

service brake/Parking brake

Service brake/parking brake

Dual circuit air brake, front and rear disc brakes with retarder, retarder, rear engineDual circuit air brake, front and rear disc brakes with retarder, retarder

suspension

Suspension

air suspension air suspension

turn

Steering

Integral hydraulic power steering machine;Φ480Steering wheel, adjustable up and down, front and rear Built-in power steering; Φ480 steering wheel, adjustable up and down, front and rear.

Auxiliary braking

Assisted braking

ABSAnti-lock braking system Anti-lock braking system ABS

wheel fetal Tire

275/70R22.5, Giti /span>275/70R22.5, GT

wheel hub

Knight

steel,8.25×22.5

front tow hook

Front tow hook

have Available

Spare tire

Spare wheel

Yes, with steel ring Available, with steel disc

Vehicle toolscar tools

have Available

Body and electrical parts

Body and electrical parts

Driver's seat

Driver's seat

Hydraulic shock-absorbing multi-directional adjustable driver's seat with three-point safety belt (fabric fabric) Hydraulic shock-absorbing multi-directional adjustable driver's seat with three-point seat belt (fabric)

passenger seat

passenger seat

Upholstered blue velvet seat, nameplate:75/23+3+1, wheelchair area3folding seatsSeat upholstered in blue velvet, nameplate: 75/23+3+1, 3 folding seats in wheelchair area.

Glass

Glass

Panoramic laminated front glass with adhesive layer, rear wind glass with adhesive and tempered, built-in sliding window adhesive backing, side windows have normal light transmission without coloring ;Panoramic laminated front glass with adhesive layer, rear windshield with adhesive layer and tempered, integrated sliding window adhesive backing, side windows have normal light transmission, no painting.

sunshades

sun visors

Front half sunshade, driver sunshade

Front half sunblind, driver's sunblind

Handrails and baffles

Handrails and partitions

Silver gray spray-coated steel pipe handrails, steel spray-coated baffles, steel pipe spray-coated driver's semi-surround, wheelchair area,1manual wheelchair guideHandrails made of silver-gray coated steel pipes, partitions made of coated steel pipes, driver semi-environment made of coated steel pipes, wheelchair area, 1 manual wheelchair guide

car door

Bus doors

Front double-leaf rear double-leaf aluminum alloy pneumatic inner swing passenger door with electronic anti-pinch function, emergency valve for interior and exterior passenger doors; aluminum alloy hatch door The double-leaf front and double-leaf rear passenger doors are made of aluminum alloy, the pneumatic inner swing door has electronic anti-pinch function, the emergency valve for the inner and outer passenger doors, the hatch door is made of aluminum alloy

rearview mirror

Rear view mirror

Manual exterior rearview mirror with short left and long right steel pipe brackets, the rearview mirror is electrified for defrosting; interior rearview mirror The manually operated outside rearview mirror, the left mirror with short brackets and the right mirror with long brackets are made of steel pipe, the rearview mirrors are equipped with an electric defrost, there is an interior rearview mirror

instrument panel

Instrument panel

Integrated instrument panel Integrated instrument panel

interior

Bus interior

Blister molded interior parts, extruded side window fasteners, panoramic aluminum alloy air ducts with channel lights, aluminum-plastic roof panels, side panels,PVCFloor covered with quartz sand floor leather (TD-8043） Die-cast interior parts, extruded side window mounts, aluminum alloy panoramic air duct with ducted lights, aluminum-plastic roof panel, side panels, PVC floor covered with quartz sand leather (TD-8043).

Floor leather, floor Wanhang, contact person13915899851Hannah

fire fighting equipment

fire fighting equipment

2indivual4kgVehicle-mounted portable fire extinguisher; anti-theft safety hammer; high temperature alarm in low-voltage battery compartment; automatic fire extinguishing bomb in battery compartment and high-pressure compartment Portable fire extinguishers 4 kg each - 2 pcs., installed on the car; anti-theft hammer; high temperature alarm in the low-voltage battery compartment; automatic fire extinguishing bombs in the battery compartment and high pressure compartment.

air conditioning

air conditioner

Refrigeration capacity24000Kcal/hTop-mounted single-cooling air conditioner; water heating frost device; additional independent heating pot,30lfuel tank, car interior6forced heater (including driver)1heater) Single-cooling overhead air conditioner with a cooling capacity of 24,000 Kcal/h, a water heater and a freezer, an additional autonomous heater, a 30-liter fuel tank, 6 forced-air heaters in the car (including 1 heater for the driver).

safety skylight

Safety skylight

1Safety skylight (without fan)1 x safety skylight (without fan)

electronic street signs

electronic road signs

Front, right side, rear, inner, and the rest according to factory standards. Uzbek, content provided by customer

Front, right, rear, inside, the rest according to factory standards, Uzbek language, content provided by the customer.

audiovisual system

audio video system

1indivual32inch TV, microphone, hard disk player (Radio andMP3player)

1pc. 32-inch TV, microphone, hard disk player, Radio&MP3 player

Wiper

Wiper

Front windshield washer, wiper

Windshield washer, windshield wiper

CANbus CAN-SHE

CANBus instruments and modulesCAN bus devices and modules

battery

Battery

2indivual150AhMaintenance-free low-voltage battery

2 pcs.  maintenance-free low voltage batteries with a capacity of 150 Ah.

Passenger counting system (calculator)

Passenger Counting System (Calculator)

Counters for counting the number of passengers at the front and rear doors, the number is2pieces.

Counter for counting the number of passengers on the front and rear doors in the amount of 2 pieces.

video surveillance

Video surveillance

Driving recorder (5Road monitoring: driving direction, driver behavior, front door, middle door, reverse),360Surround view system(6cameras), flow counter (both front and rear doors pick up and drop off passengers),1Tharddisk

Driver recorder (5-channel monitoring: driving direction, driver behavior, front door, middle door, reverse),
360 degree surround view system (6 cameras), traffic counter (front and rear doors pick up and drop off passengers), 1T" hard drive

Station reporting system

Public address system Stop warning system

station announcer Equipped，Eat (In the system you must enter the time zone+5(Uzbekistan time).

In systems, you must enter time zone +5 (Uzbekistan time). In systems, you must enter time zone +5 (Uzbekistan time).)

route sign

Route board Route indicator

LEDelectronic street signs: (front and back street signs,LEDdynamic,1372*220*50, ,10), internal road signs-In-car scrolling screen,LEDdynamic,837*101.7，8, front and back street signs,LEDdynamic,1372*220*50,10, side sign,LEDdynamic,1131*210， 8), 4 pieces.LED electronic road signs: (front and rear road signs, LED dynamic,1372*220*50, ,10), Inner road signs-rolling screen in the car, LED dynamic, 837*101.7, 8, front and rear road signs, LED dynamic, 1372*220*50.10, Side road signs, LED dynamic, 1131*210, 8), 4 pieces. LED electronic traffic signs: (front and rear traffic signs, LED dynamic,1372*220*50, ,10), Indoor traffic signs - moving screen in the car, LED dynamic, 837*101.7, 8, front and rear traffic signs, LED dynamic,1372*220*50.10, Side traffic signs, LED dynamic, 1131*210, 8), 4 pcs.

paint

Dye

Pattern as per customer photo Drawing based on customer's photo

card reader

Carsider

Reserved credit card machine wiring harness for front and rear doors

Reserved wiring harness for credit card machine issued near front and rear door

Electrical boxes, tool boxes Electrical boxes, tool boxes

With equipment box With equipment box

other Other

Side window sink, trash can, first-level power box, step lights, electronic clock with temperature display, electric horn,4Only in-car speakers, logo and language according to customer requirements

Side window sink, trash bin, first level power supply, running boards, electronic clock with temperature display, electric horn, 4 car speakers, logo and language as per customer requirements.

seating arrangement seating arrangement

Remark Note

1.There are no coin machines and credit card machines. Customers can purchase them by themselves, but the wiring harnesses for the credit card machines at the front and middle doors must be pre-buried.

2. The above chassis configuration has been informed to customers,CNGThe consumption is higher than our recommended consumption and has been recognized by customers.

1. There are no coin-operated or credit card machines. Customers can purchase them themselves, but the wiring harnesses for the credit card machines at the front and middle doors must be pre-released.
2. The above chassis configuration informs customers that CNG consumption exceeds the recommended consumption. This is recognized by customers.

In the system you must enter the time zone+5 (Uzbekistan time).

In systems, you must enter time zone +5 (Uzbekistan time). In systems, you must enter time zone +5 (Uzbekistan time).

A list of all warning signs on the bus is provided by the buyer (in Uzbek language).

A list of all warning signs on the bus is provided by the buyer (in Uzbek). A list of all warning signs on the bus is provided by the buyer (in Uzbek).
